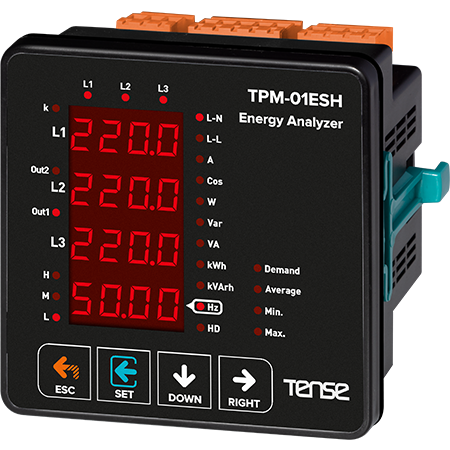

3-phase network analyzer TPM-01ESH - TENSE (Turkey)

Description:
Multifunctional three-phase network parameter digital panel meter designed for precise measurement and monitoring of electrical quantities. It allows monitoring of current, voltage, frequency, power and energy consumption with RS485 ModBus RTU communication capability.

Key features

• Three-phase voltage and current measurement

• Indication of active, reactive and apparent energy (P, Q, S).

• Display of Cosφ and power factor values for each phase

• Measurement of voltage and current for each phase between phase and neutral, and inter-phase voltage and current.

• Frequency measurement

• Harmonic voltages and currents up to the 31st harmonic

• Total active energy import and export values (ΣkWh)

• Total inductive and capacitive reactive energy (ΣkVArh)

• Display of minimum and maximum values, maximum demand

• 2 relay outputs and 1 digital input

• Event logs (voltage/current high/low, unbalance, THD-I)

• Password protected menu

Technical functions

• Communication: RS485 ModBus RTU (1200-38400 bps)

• Connection: 3-phase voltage transformer and 3-phase current transformer.

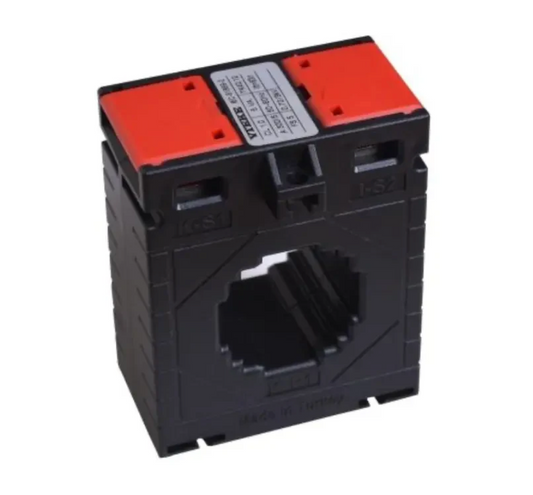

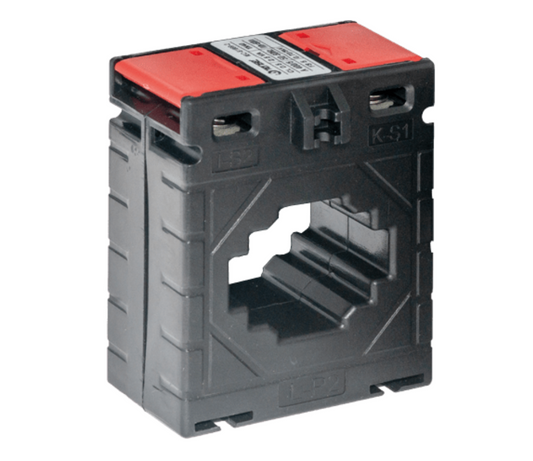

• Compatible current transformers: 60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5, 1500/5.

• Panel size: standard digital mounting panel

Applications:

• Monitoring of three-phase electrical networks in industrial and commercial applications

• Monitoring of energy consumption and power quality

• Integration into automation systems using ModBus RTU
