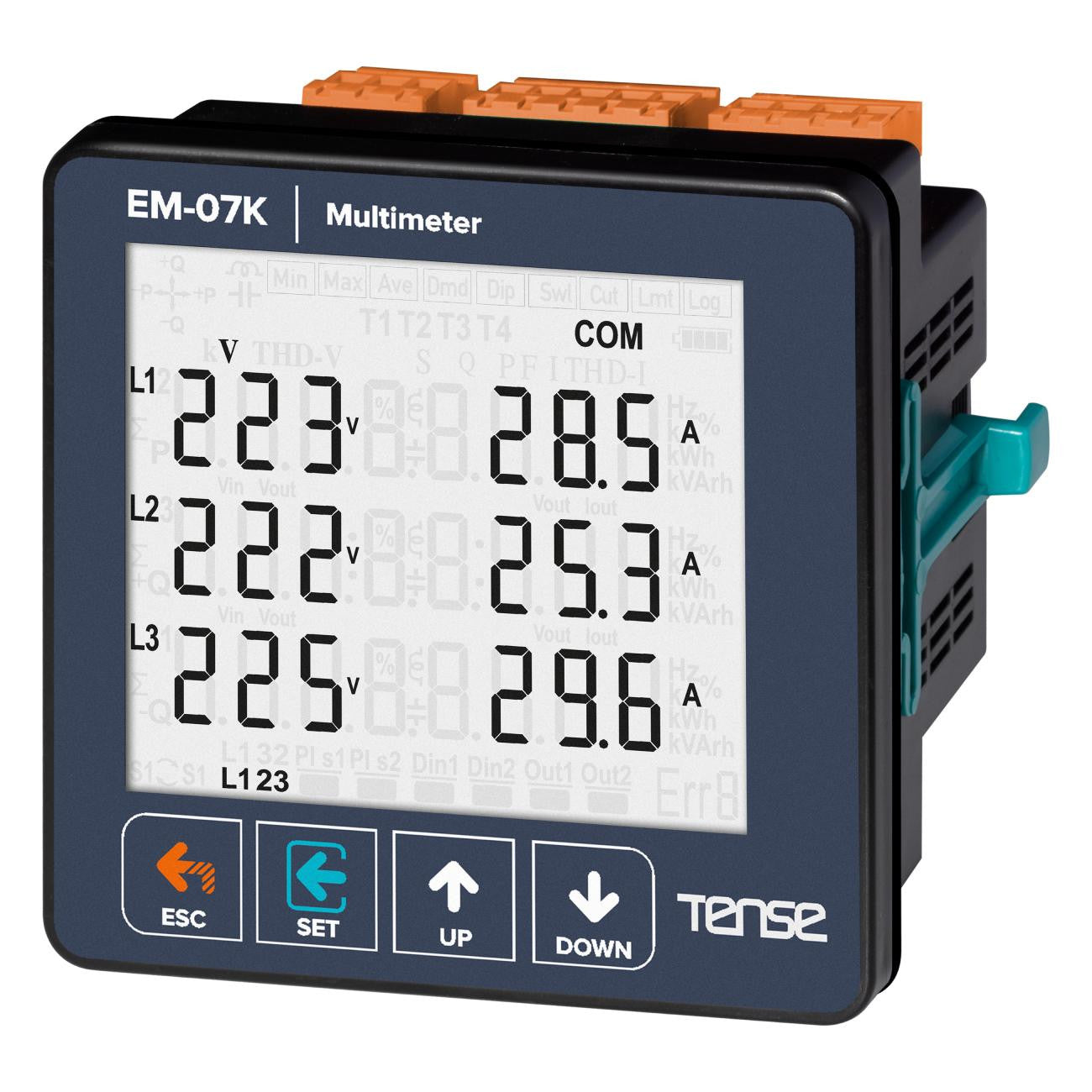

3-phase panel RS485 voltage-frequency-power-energy-current multimeter

Three-phase multimeter - three-phase multifunctional digital panel meter, current, voltage, frequency and total power indicator, energy kW*h and ModBus RTU manufacturer TENSE (Turkey), panel meters.

Main advantages:

• RS485 Modbus RTU (1200-38400bps).
• 71.5 x 61.5 custom glass LCD design
• 3-phase voltage transformer and 3-phase current transformer.
• Shows V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3.
• Shows the minimum, maximum and average values ​​of V1, V2, V3, V12, V23, V31, F1, F2, F3.
• Displays minimum, maximum, average and set values ​​I1,I2,I3,S1,S2,S3 High/low voltage, current, frequency (adjustable) Phase-neutral or phase-phase protection (adjustable)
• Energy meter / power meter
• Voltage, current and frequency protection
• Shows phase sequence
• Can delete requirements
• The menu is password protected.

Typically, this multimeter is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. Such transformers can be purchased in our e-shop,
