Vendor: TENSE

3 Phase Digital Panel Meters Current Multimeter Voltage Frequency Indicator

Barcode: EM-100D
Regular price
€61,52 €50,84 excl. VAT
Regular price
Sale price
€61,52 €50,84 excl. VAT
Low stock: 7 left
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
Mark: 100A
  • Description
  • Instructions
  • Payment methods
  • Warranty

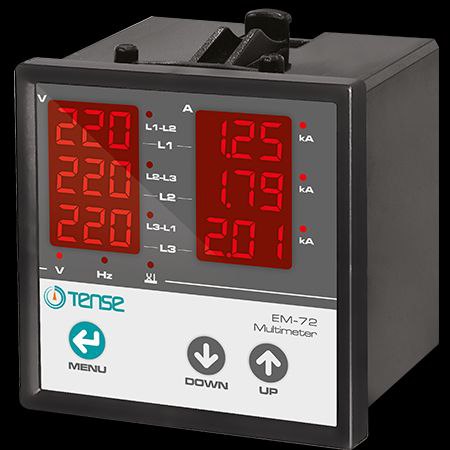

TENSE three-phase panel multimeter - VAHz

Description

TENSE digital three-phase panel multimeter is a multifunctional meter for controlling electrical parameters of three-phase systems. With this instrument, you can measure voltage, current, and frequency, check correct phase connection, and it is suitable for industrial facilities, machinery, and AC distribution systems.

Key advantages

  • Multifunctional measurements: I, U (L-L, L-N), Hz.

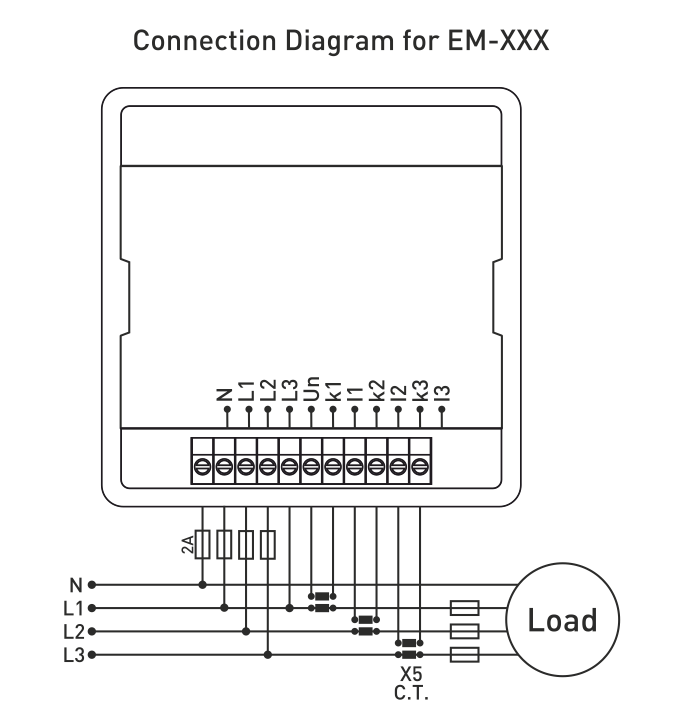

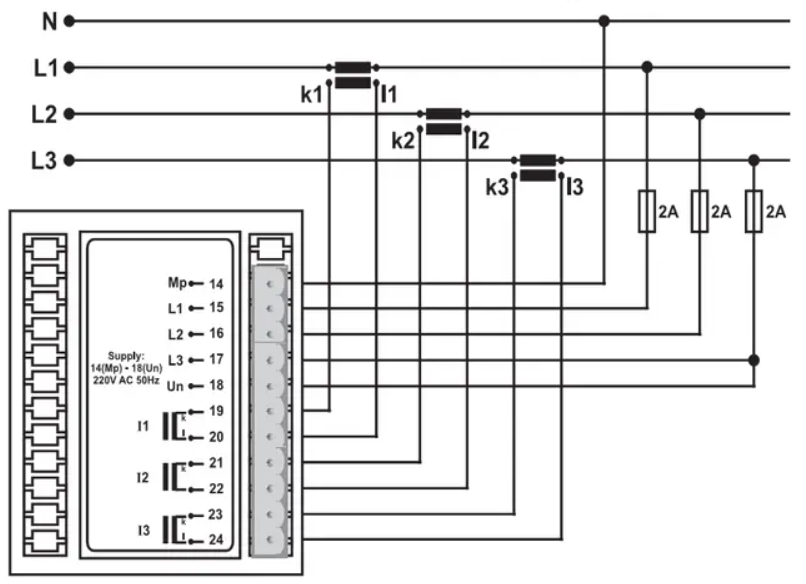

  • Indirect current measurement using connected current transformers.

  • Phase monitoring and wiring check

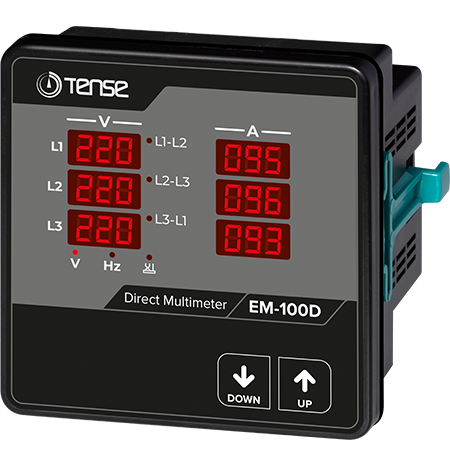

  • EM-100D and EM-250D models include a measuring transformer.

  • Mounting on standard DIN rail

Measuring ranges

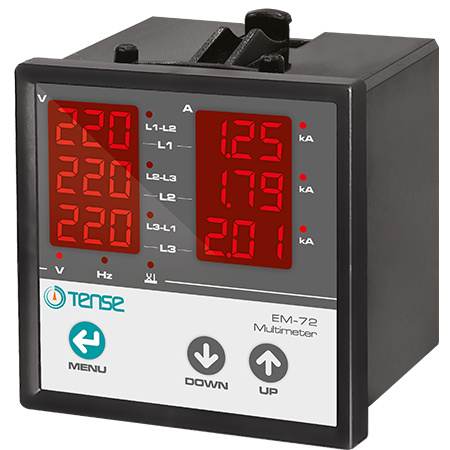

ParameterModels EM-06 / EM-72EM-100DEM-250D
Current5/5 ... 9995/5 A (indirectly)1 - 100 A2 - 250 A
Voltage L-N1 - 300 V AC1 - 300 V AC1 - 300 V AC
Voltage L-L1 - 500 V AC1 - 500 V AC1 - 500 V AC
Frequency40 - 60 Hz40 - 60 Hz40 - 60 Hz

Recommendations

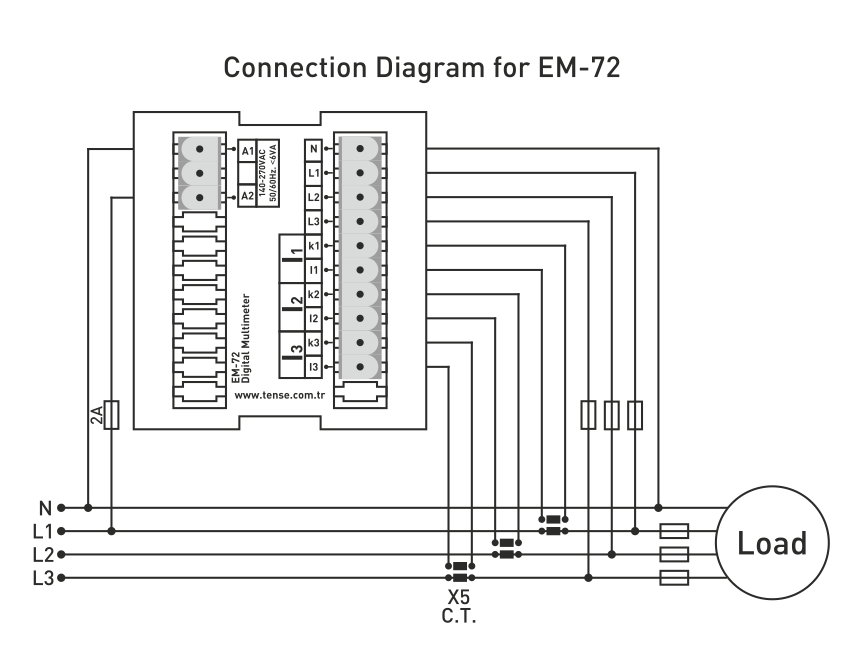

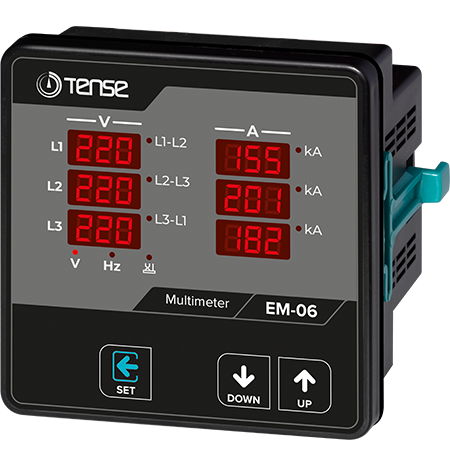

  • For EM-06 and EM-72 models, we recommend using the following current transformers:
    60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5.

  • Transformers can be purchased directly in our e-shop.
