Vendor: TENSE

3-phase digital panel multimeter DIN current, voltage and frequency indicator

Barcode: EM-100DIN
€61,52 €50,84 excl. VAT
€61,52 €50,84 excl. VAT
Low stock: 7 left
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
Mark: 100A
  • Description
  • Instructions
  • Payment methods
  • Warranty

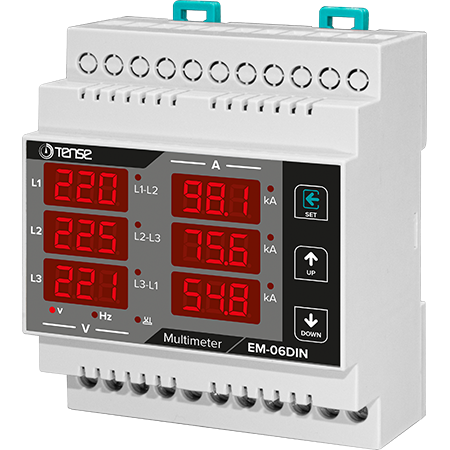

3-phase DIN multimeter - multifunctional digital panel meter, current, voltage and frequency display, manufacturer TENSE (Turkey), panel meters

Main advantages:

  • Multifunctional meter - 4 parameters (I,U(L-L,L-N,HZ));
  • Measuring range:

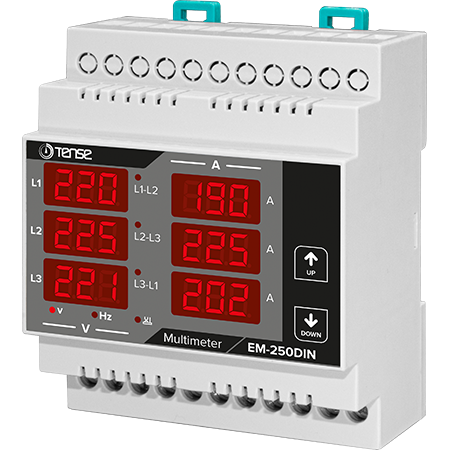

  1. (EM-06DIN), indirect measurements 5/5...9995/5A (EM-06DIN), 1A - 100A (EM-100DIN), 2-250A (EM-250DIN);

  2. Voltage - 1V-300V AC (L-N), 1V-500V AC (L-L);

  3. Frequency - 40Hz-60Hz;

  • Phase monitoring;

  • Measuring transformer included (EM-100DIN and EM-250DIN).

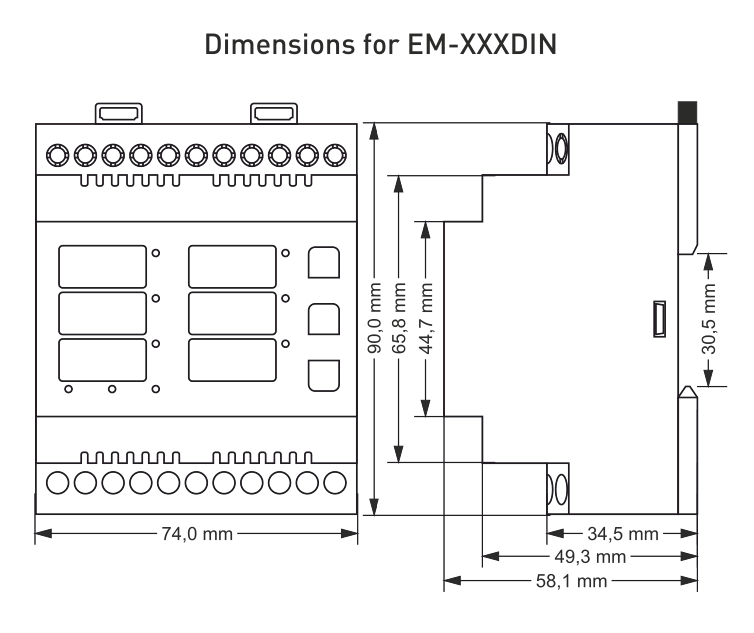

The multimeter is mounted on a standard 35 mm DIN rail.

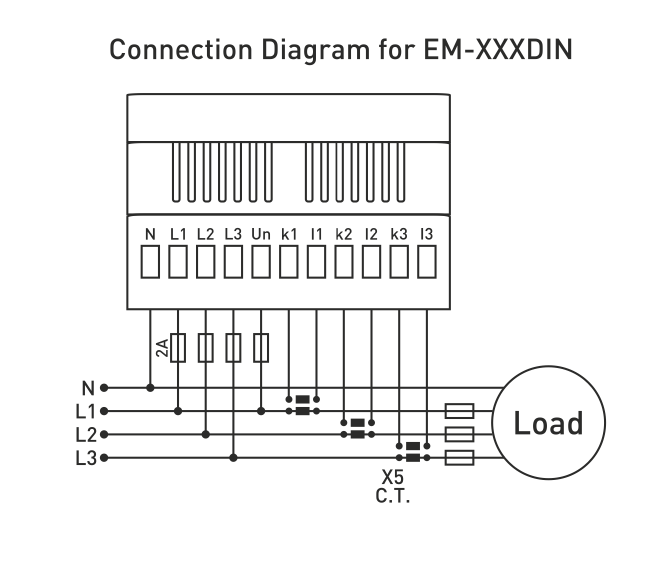

Typically, this multimeter (EM-06DIN) is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. Such transformers can be purchased in our e-shop.

Download to

User Manual

Online payment by bank card – after placing the order, you will be redirected to the payment portal. You will receive payment confirmation in your email.

Cash payment upon delivery – you will pay the amount specified in the payment notice to the courier upon delivery.

Payment by bank transfer – a prepayment invoice (proforma) will be sent to your email address no later than the next business day, indicating the bank account number to which the payment should be made.

Payment by invoice – this option is available to cooperation partners who have a cooperation agreement with our company.

If you wish to use one of the last two payment methods, please contact our customer service specialist, who will provide instructions on receiving an invoice with or without VAT.

The electrical equipment we supply meets high-quality standards, comes with a 24-month warranty, and fully complies with all European Union requirements.

We also offer free delivery for orders over 100 EUR, as well as a flexible discount and promotion system. Our employees' technical knowledge and experience allow us to provide professional consultations and, if necessary, offer alternative electrical product solutions.

The electrical equipment we supply meets high quality standards, comes with a 24-month warranty, and complies with all EU requirements.
In case of claims, returns are free of charge.
